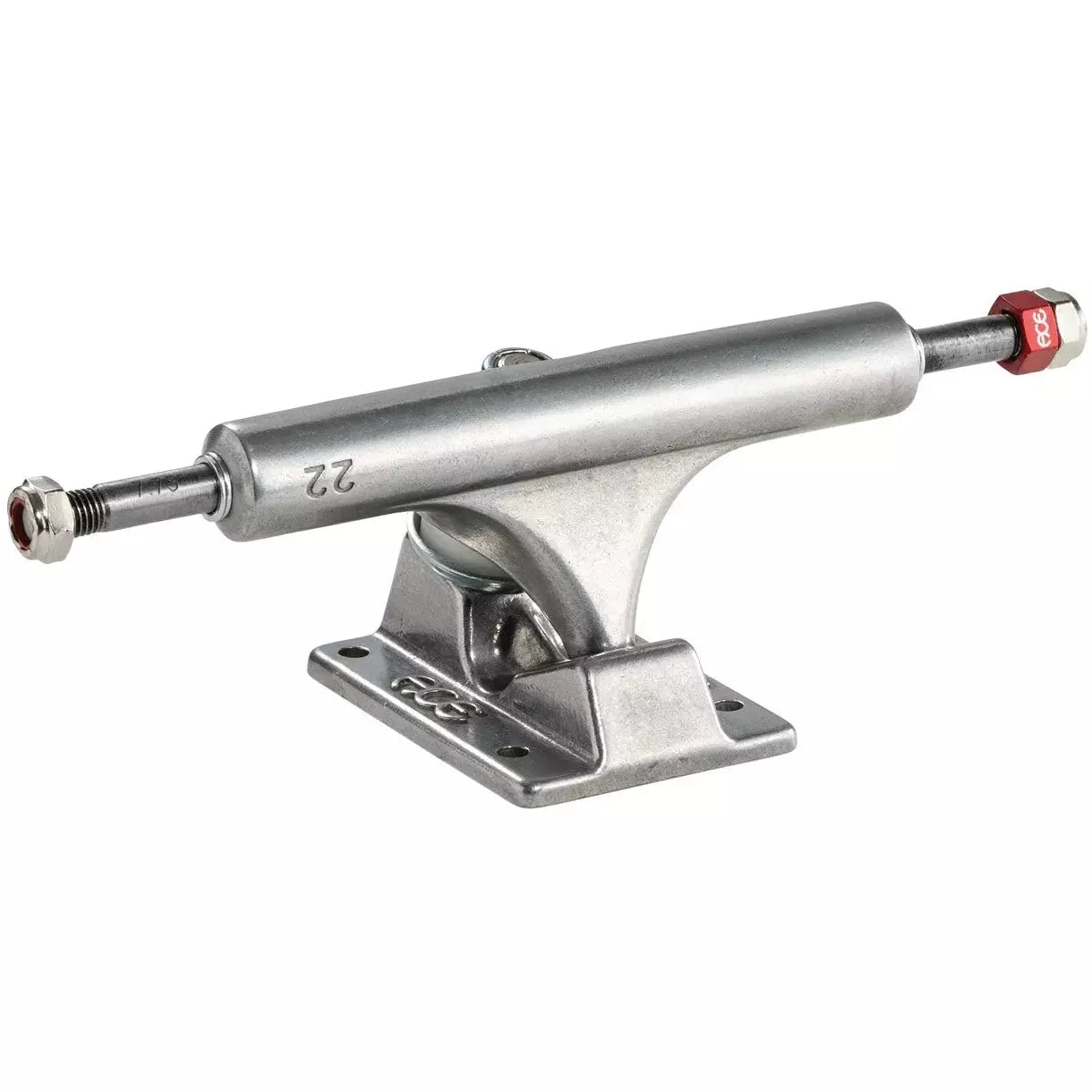

ACE AF1 Hollow 22 Polished Skateboard Trucks

The ACE AF1 Hollow 22 has a hollow axle and hollow kingpin – the lightest version of the AF1 – with the same geometry and turn.

Priced per truck. Add 2 to your cart for a full set – one front, one back.

Size and fit

• Size 22
• Axle width: 7.75"
• Hanger width: 5.2" (132mm)
• Fits decks 7.25"–8.0"
• Height: 2.1" (53mm)
• Weight: 340g per truck

Not sure it's the right size? Match the axle to your deck: the 22 is built for 7.25"–8.0" boards. See every size on the ACE trucks page, or browse skateboard decks.

Construction

• Hollow axle and hollow kingpin
• AA 356.2 aluminum alloy, cast with ACE's proprietary process
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel axles, oversized to eliminate bearing wobble
• Rethreading axle nuts (patent pending) – no more damaged axle ends
• Hand-poured 96a urethane pivot cups
• Machine-faced hanger ends for precise bearing contact
• Top bushing: 12mm tall, 91a
• Bottom bushing: 14mm tall, 86a

Trucks only. Add hardware, wheels and bearings to finish your setup.
